Ionboard S22, Full Spectrum LED Grow Light, 60 x 60 cm coverage


This light connects with the controller 69 for full control via controller or on your phone. Controller not incl.

  • Dimmable LED grow light designed with an optimised spectrum and diode positioning, to maximise plant yields.
  • Utilises full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimised for all plant stages.

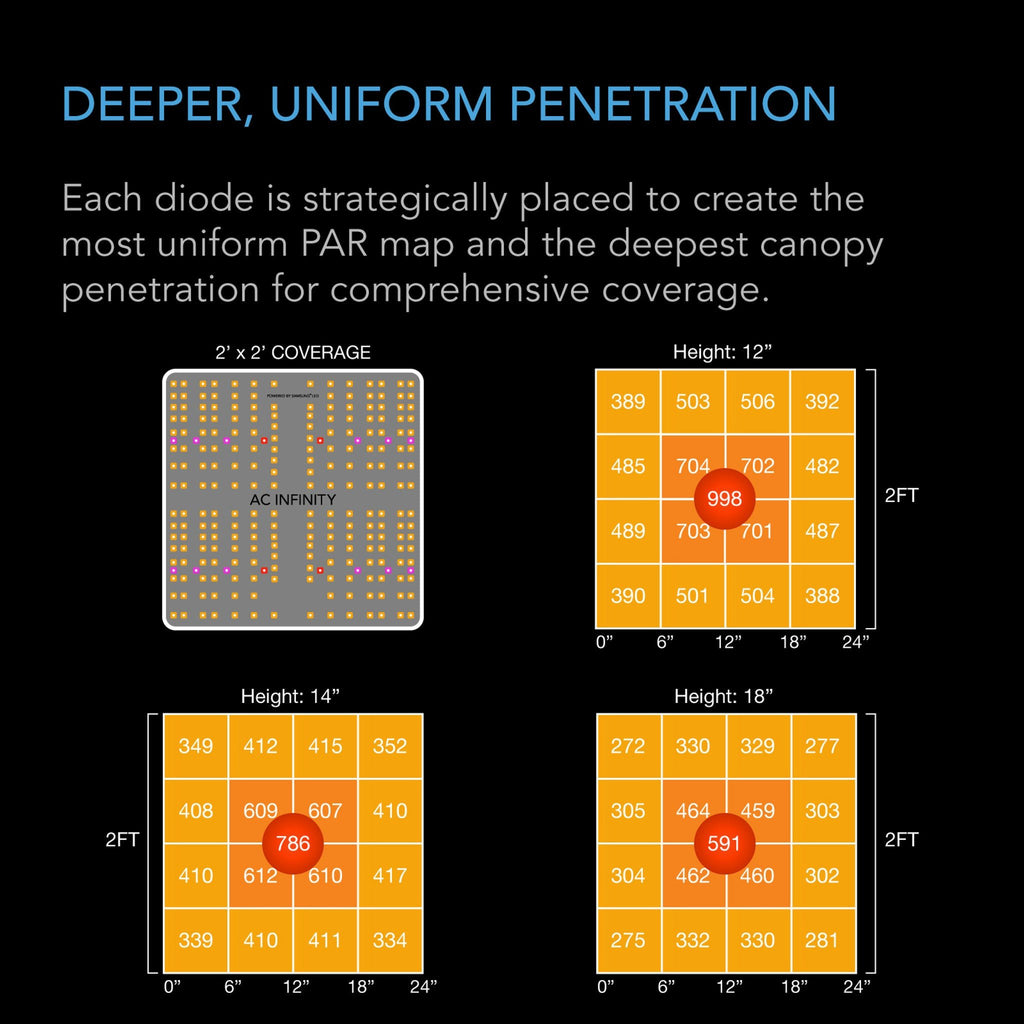

  • Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
  • Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
  • Constructed on a unibody aluminium board and IP-65 rated for grow environments with higher humidity and heat.

PRODUCT DESCRIPTION

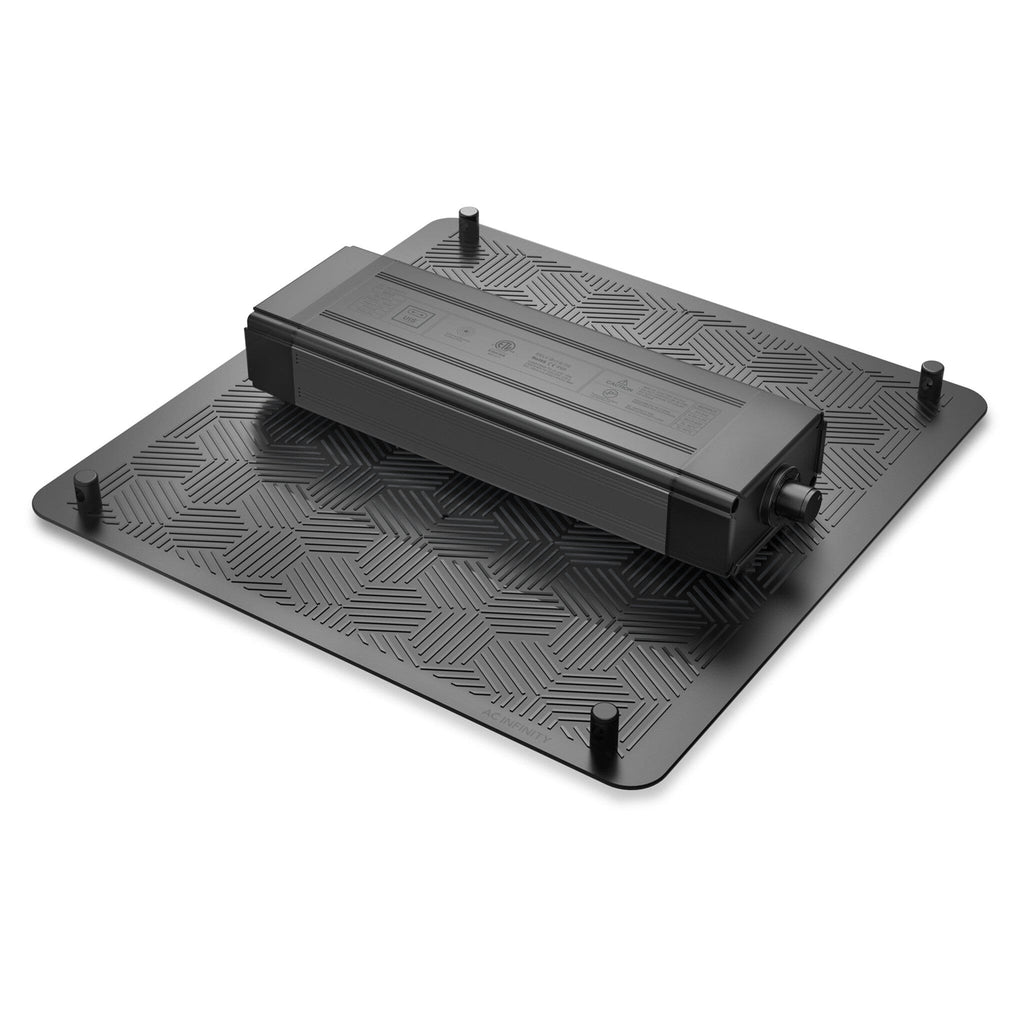

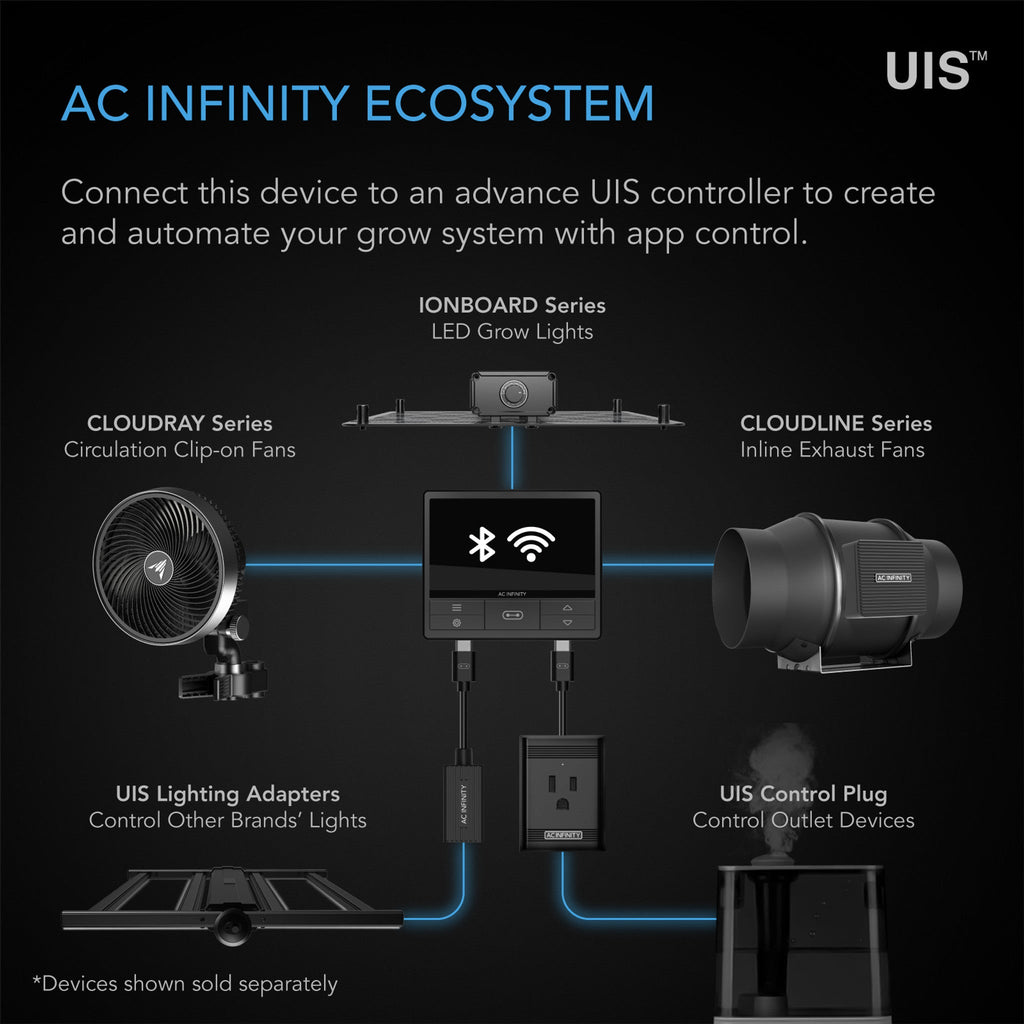

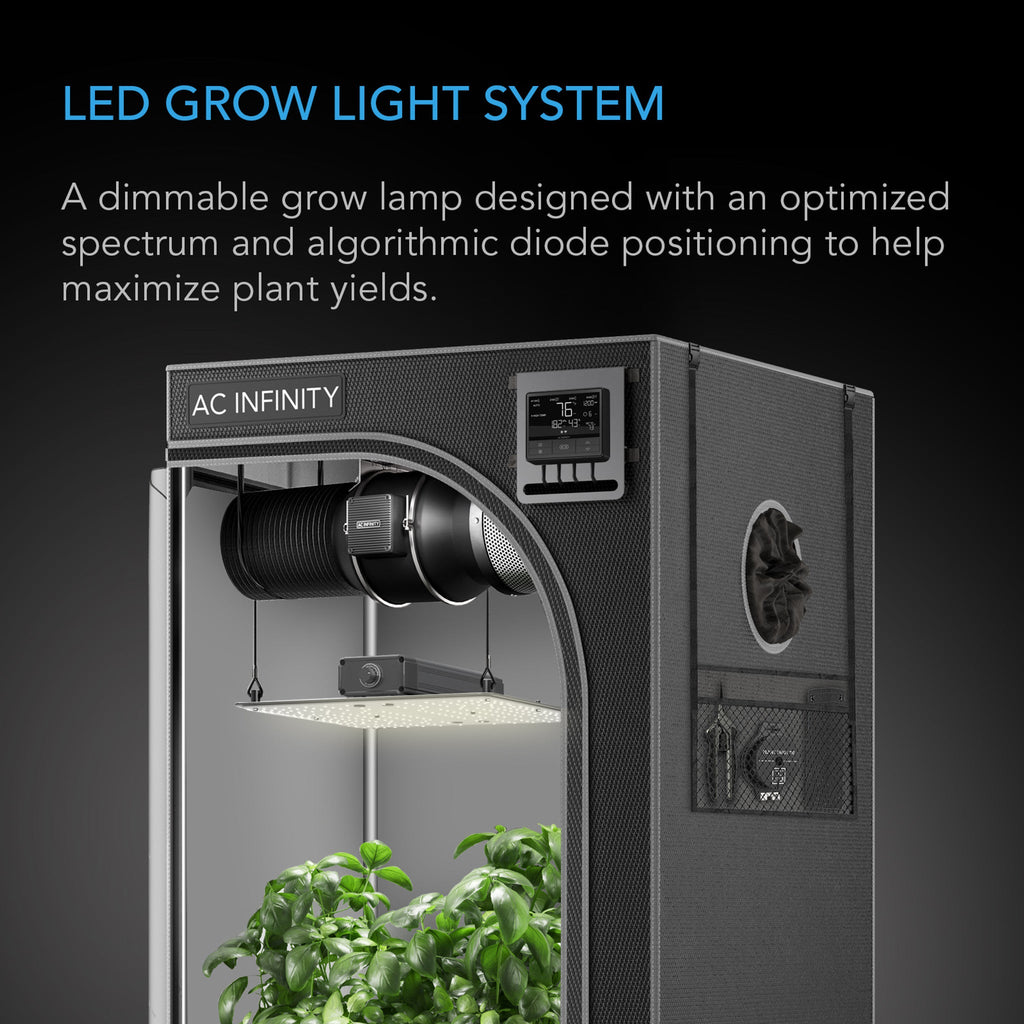

A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximise plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminium board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

OPTIMIZED SPECTRUM

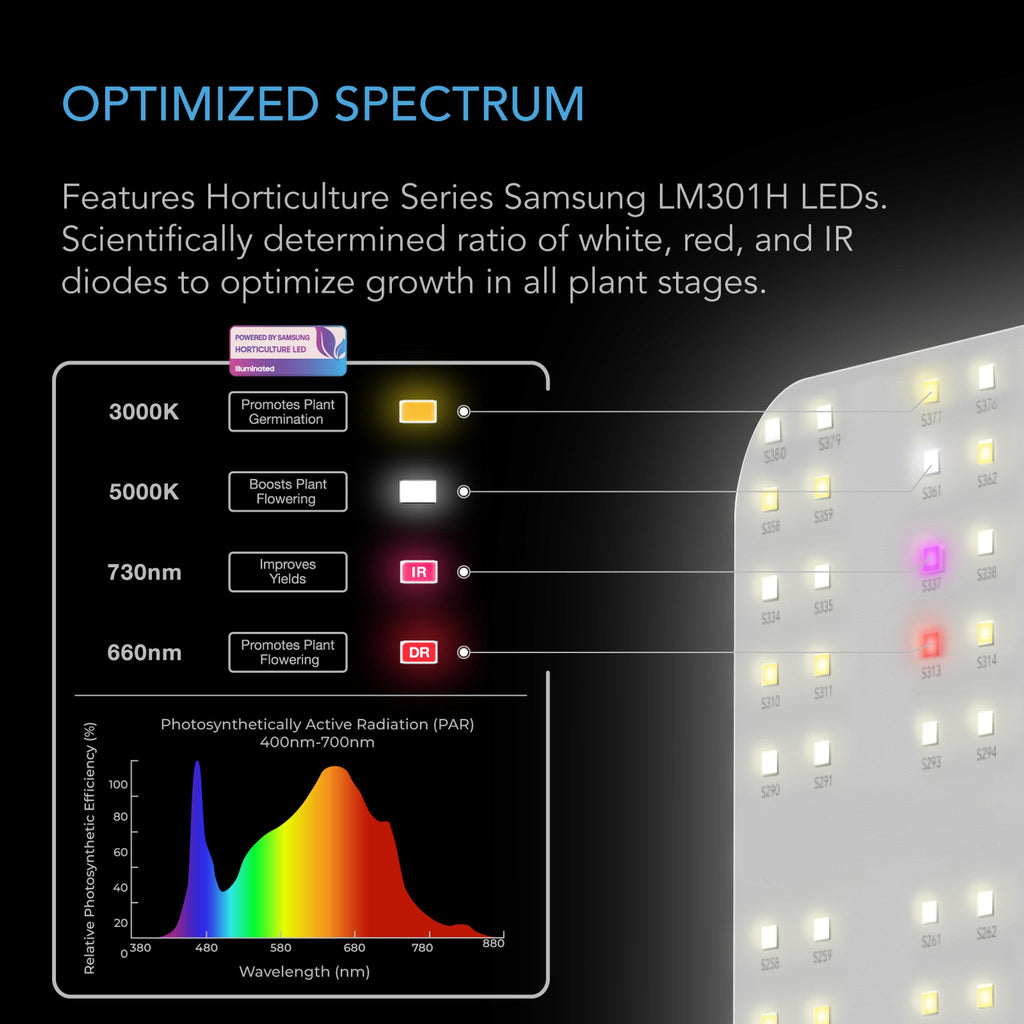

Each light contains Horticulture Series Samsung LM301H 3000K and 5000K white diodes specifically formulated to help maximise plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

FUTURE READY CONTROLS

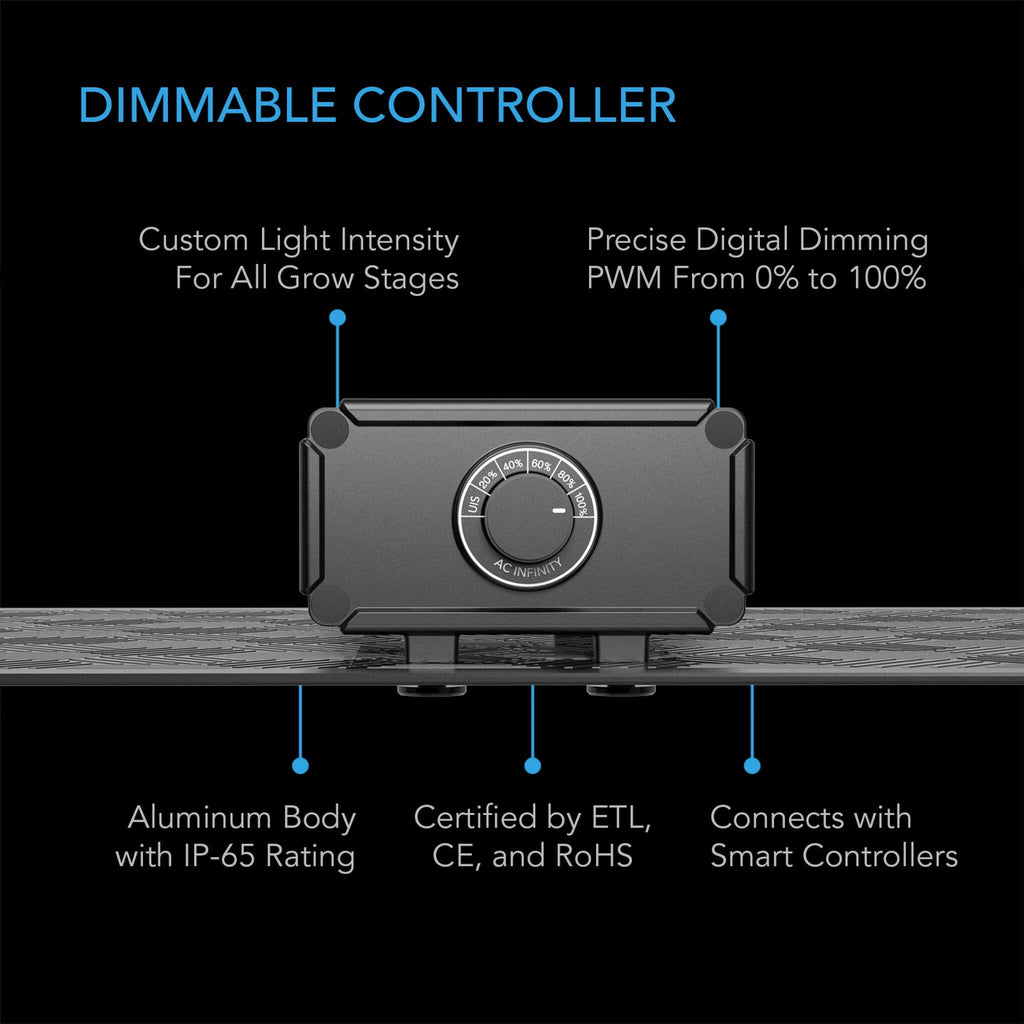

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

BE AWARE THIS UNIT COMES WITH USA PLUG -  AU TRAVEL ADAPTER NOT INCLUDED. IT DOES 240 V AND CAN BE CONNECTED WITHOUT ISSUES USING AN ADAPTER OR PLUG EXCHANGED TO AU PLUG.




   Product Identification Ionboard S22 by AC Infinity
   Manufacturer    AC Infinity Inc.
   Product Name    IONBOARD S22
   Product Model    AC-IBS22
   UPC Code    819137022515

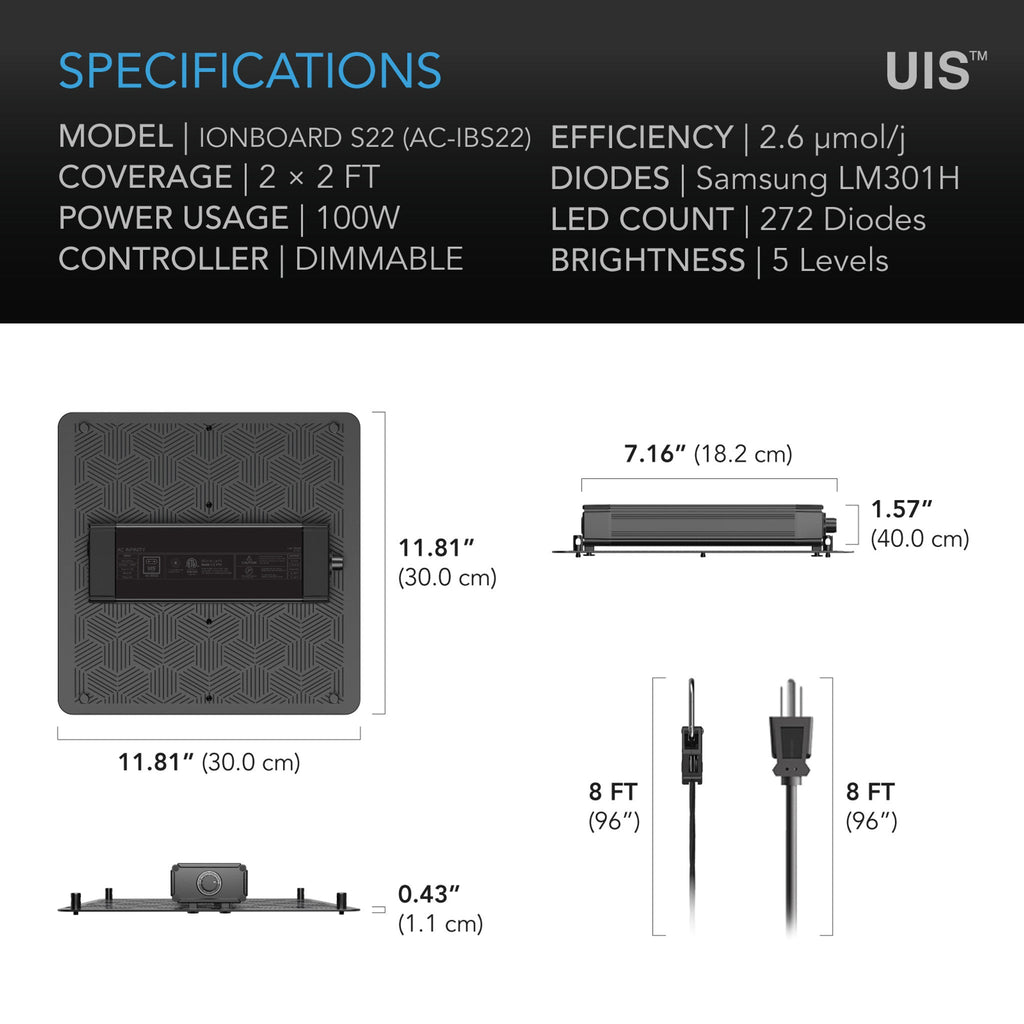

   Product and Mounting Dimensions
   Light Dimensions    11.81 x 11.81 in. (30.0 x 30.0 cm)
   LED Board Thickness    0.43 in. (1.1 cm)
   Driver Dimensions    7.16 x 1.57 in. (18.2 x 4.0 cm)
   Product Performance and Technical Specs
   Coverage    2 x 2 ft. 9  ( 60 x 60 cm )
   Diodes    Samsung LM301H
   LED Chip Count    272
   LED Driver    AC Infinity Proprietary Driver, Model GTS-100
   Efficiency    2.7 µmol/j
   PPFD    998 PPFD
   Spectrum    660nm, 730nm, 3000K, 5000K
   Wattage    100 W
   Voltage    100-277V AC
   Frequency    50/60 Hz
   Amps    0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
   Controller    Digital Dimming Timer
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Life Expectancy    50,000 Hours
   ETL Cert. (Whole Product)    Product Manual PDF
   Product Manual
   Product Manual
   Product Manual PDF



NOTE THIS LIGHT COMES WITH USA PLUG - TRAVEL ADAPTER NOT  INCLUDED.
