TrolMaster Hydro-X Environmental Control System RJ12 to 3.5 Jack Extension Cable / ECS-2

RJ12 to 3.5 Jack Extension Cable Set (ECS-2)



Add a RJ jack on your current LED light. If you have the manual dimmer but are missing the RJ jack this is your solution. This will connect with the AC Infinity light adapters and then into the AC Infinity Controller 69. Note AC Infinity lighting adapter sold separately.

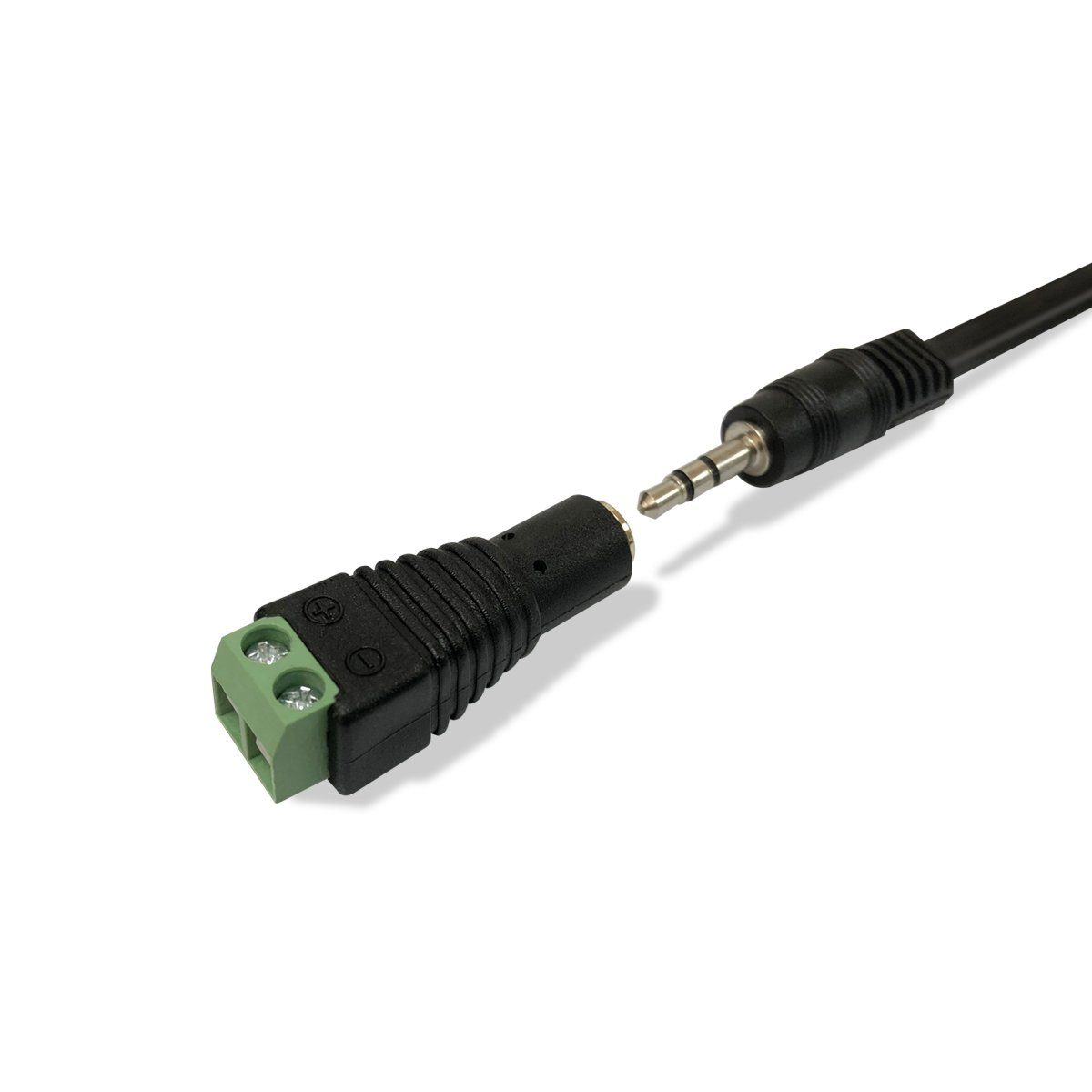

The ECS-2 cable set is designed to connect Hydro-X to most LED drivers with a pigtail 0-10v wiring. The ECS-2 comes with a 16 ft RJ12 cable, a Y-splitter and a special 4 ft RJ12 / 3.5mm jack cable. The special cable connects to your lighting fixture / LED driver using the two-screw terminal block to connect to loose wires on the LED driver. Simply connect the two wires from your LED driver to the terminal block, each of the lights being controlled are wired in a “daisy-chain” configuration back to the Hydro-X LMA adapter.

Features

  • Plug & Play

What TrolMaster does

  • Automation
  • Control
  • Data Collection
  • Monitoring
  • Optimization
  • Remote Access


TrolMaster's platform offers

  • Smart connectivity
  • Remote accessibility
  • Flexibility
  • Modularity
  • Upgradability

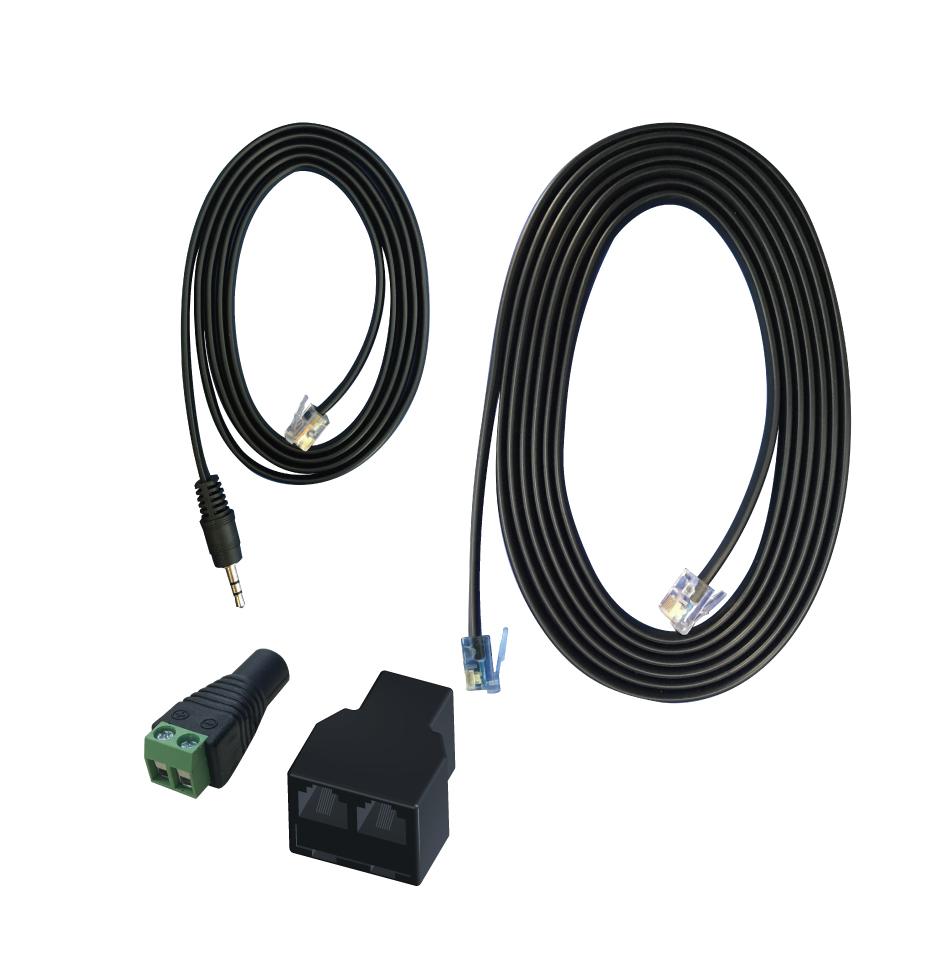

What's in the box

  • 1 x 16 ft RJ12 Cable
  • 1 x 4 ft RJ12 to 3.5 Jack Cable
  • 1 x T-shaped Splitter
  • 1 x 3.5mm Female Barrel Connector



Specifications

  • Packaging Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
  • Approx. G.W. per pack: 0.18kgs
