Ionboard S33, Full Spectrum LED Grow Light use with Controller 69 91.5 x 91.5 cm coverage


This light connects with the controller 69 for full control via controller or on your phone. Controller not incl.

    • Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximise plant yields.
    • Utilises full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimised for all plant stages.

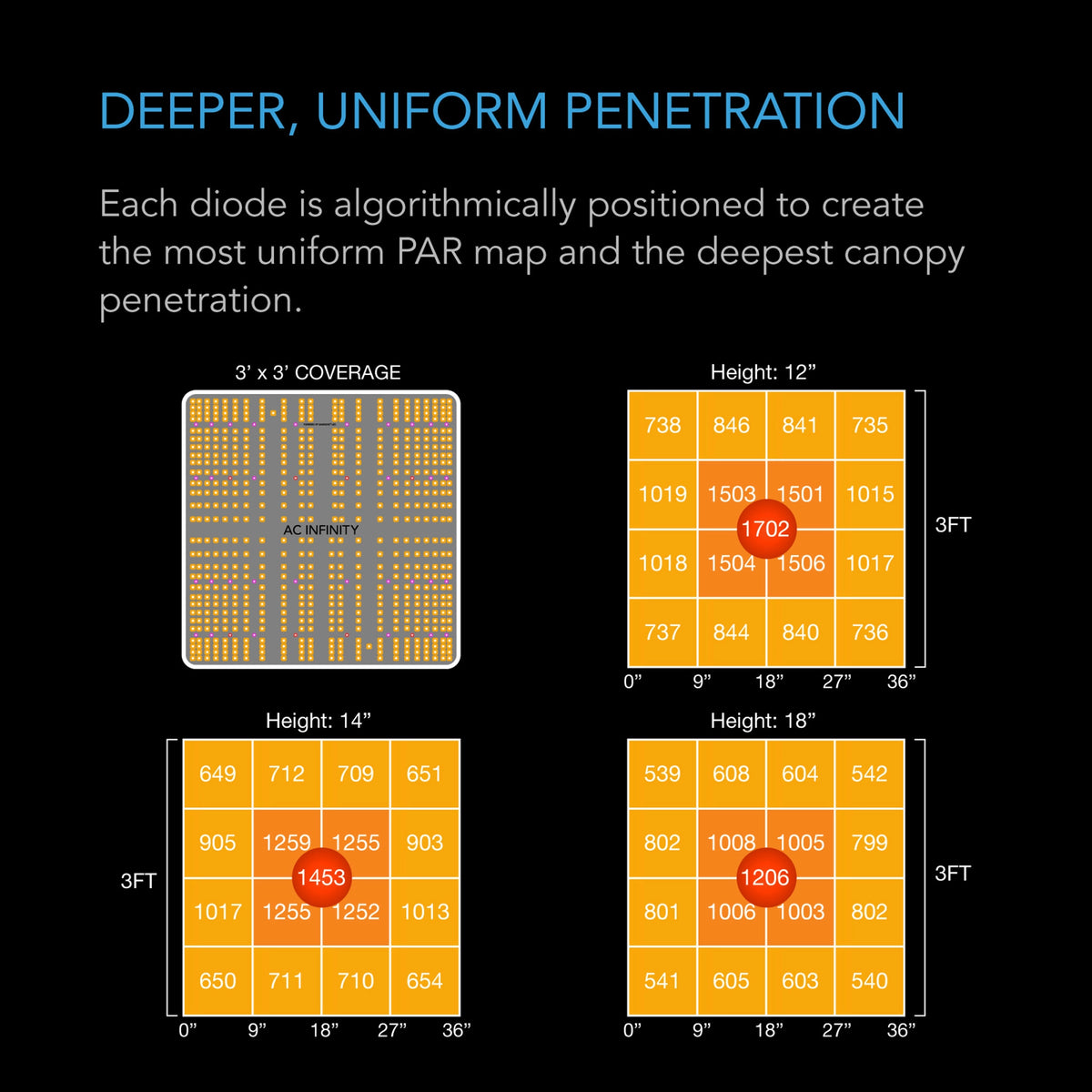

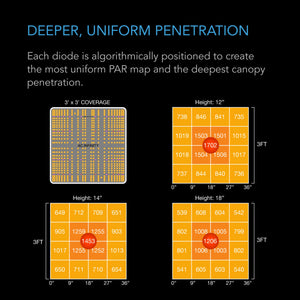

    • Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
    • Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
    • Constructed on a unibody aluminium board and IP-65 rated for grow environments with higher humidity and heat.

    Product Description

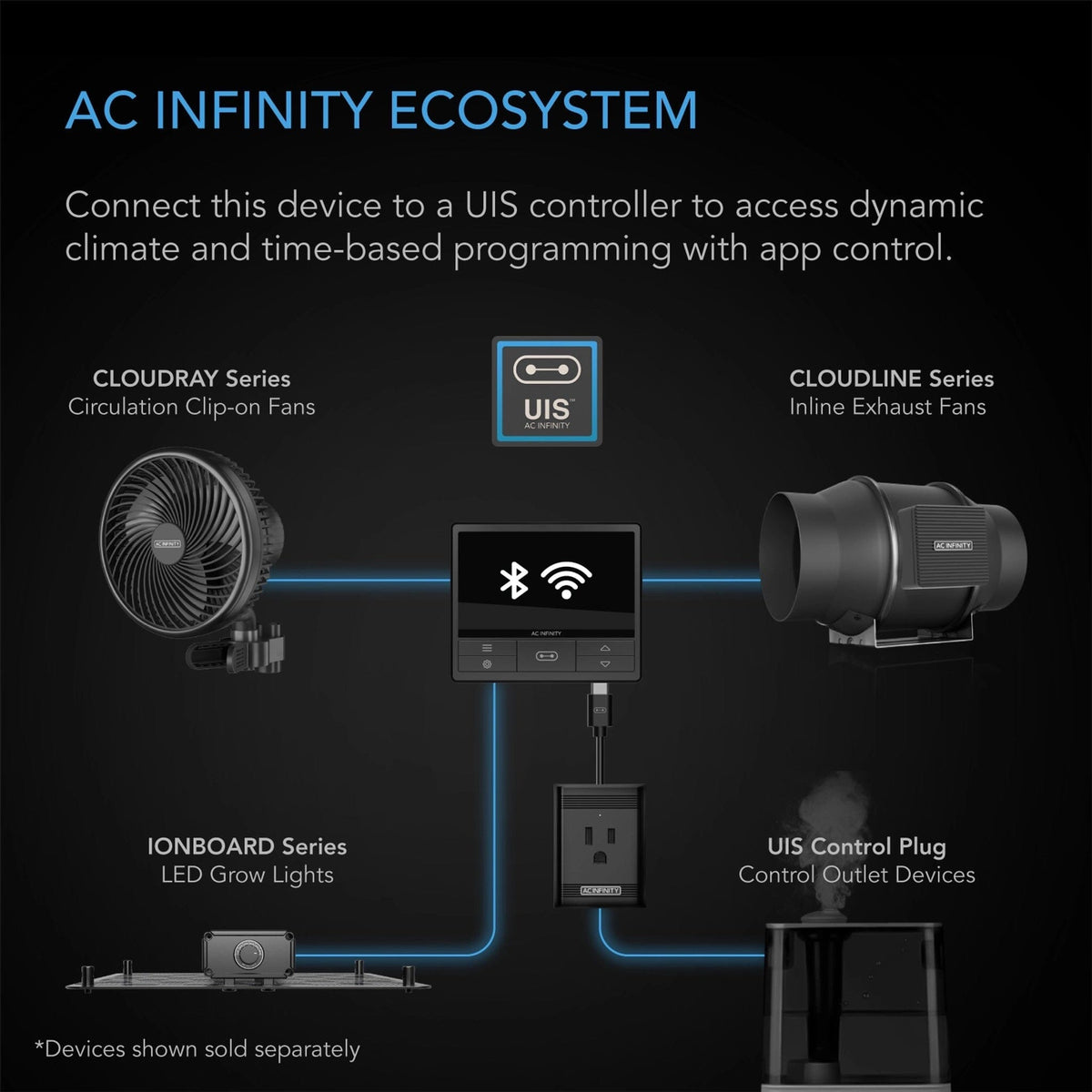

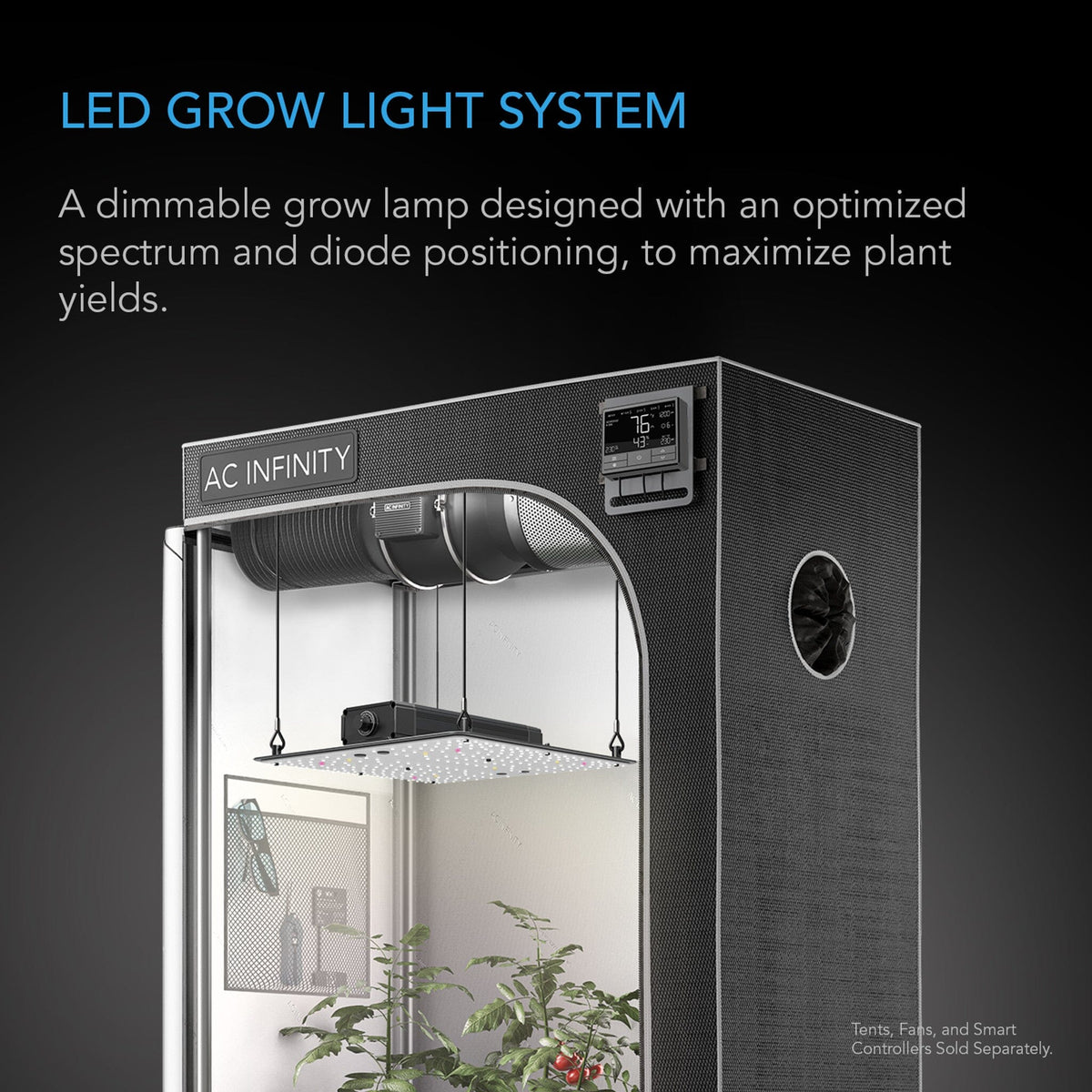

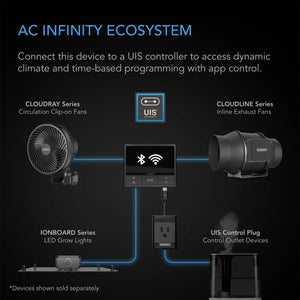

    A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximise plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminium board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

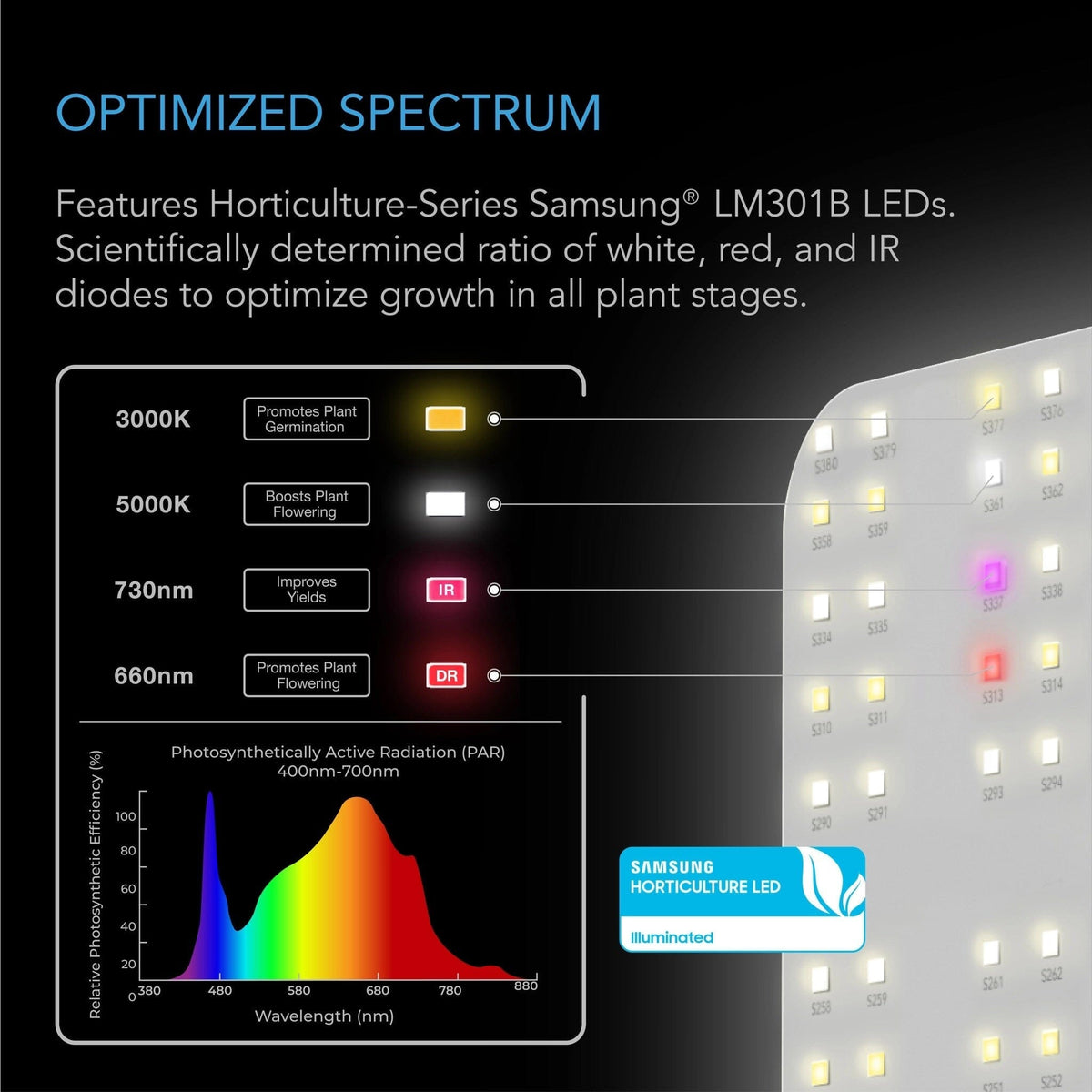

    Optimised Spectrum

    Each light contains Horticulture Series Samsung LM301H 3000K and 6500K white diodes specifically formulated to help maximise plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

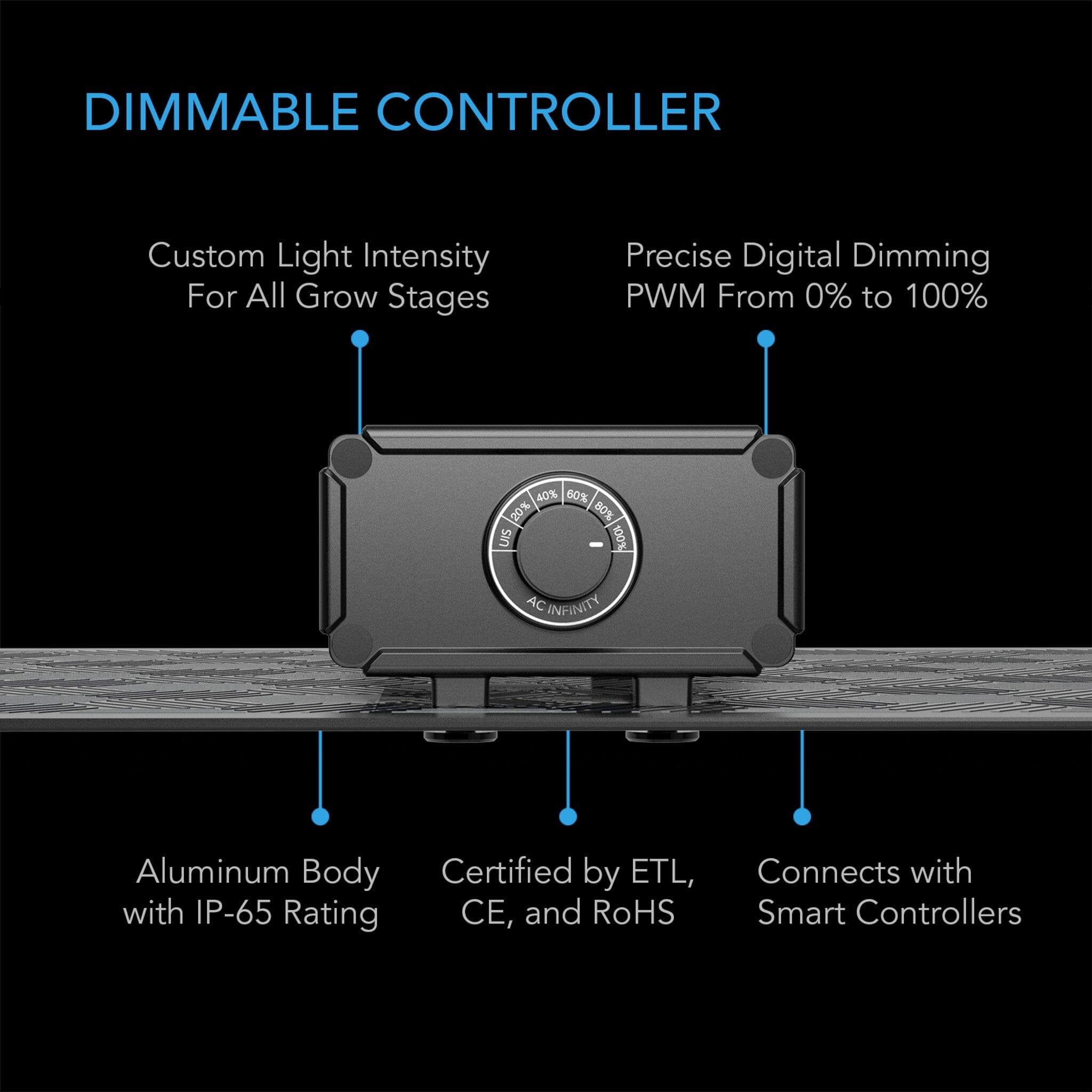

    Future Ready Controls

    Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.



    Product Identification AC Infinity Ionboard S33
       Manufacturer    AC Infinity Inc.
       Product Name    IONBOARD S33
       Product Model    AC-IBS33
       UPC Code    819137022539

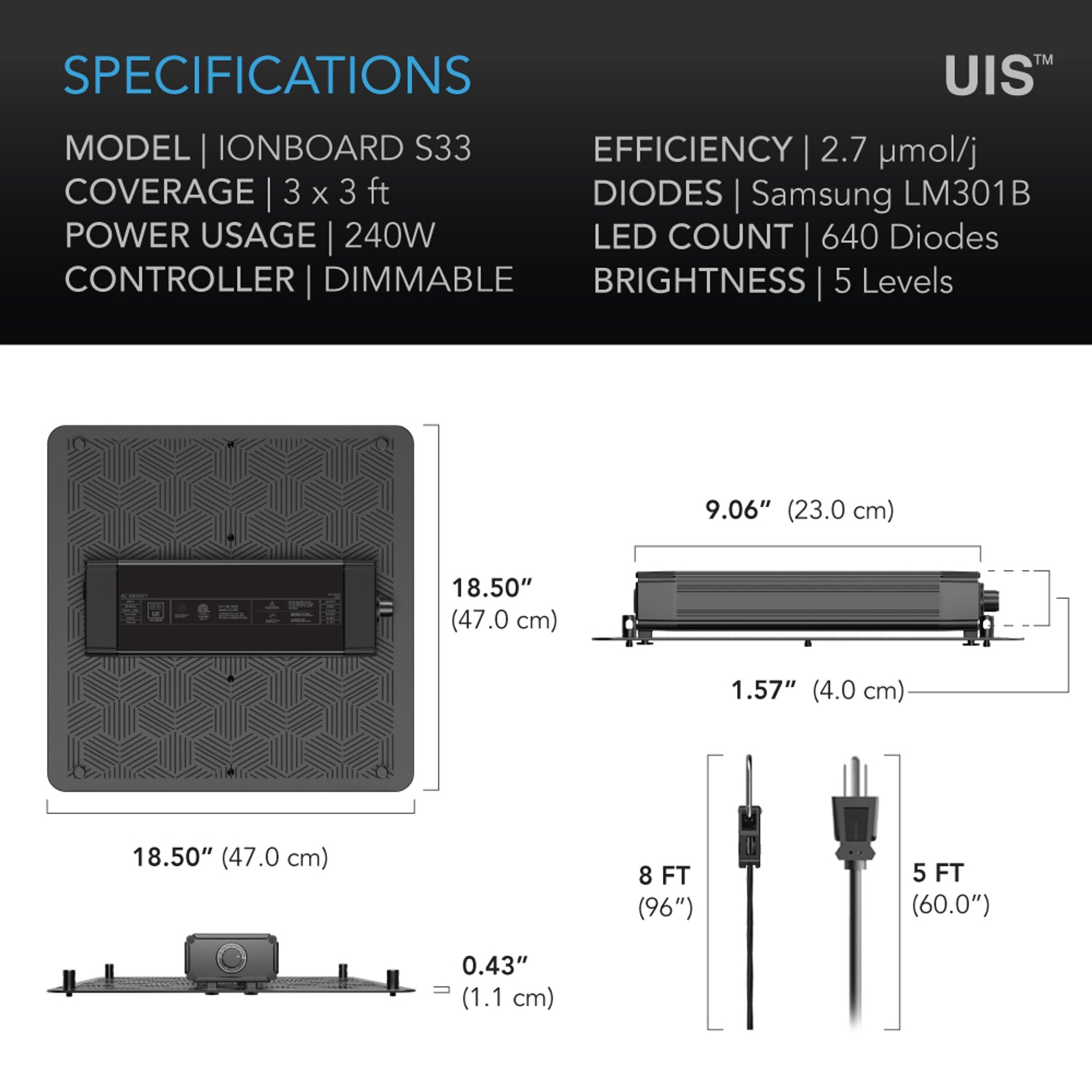

       Product and Mounting Dimensions
       Light Dimensions    18.50 x 18.50 in. (47.0 x 47.0 cm)
       LED Board Thickness    0.43 in. (1.1 cm)
       Driver Dimensions    9.06 x 1.57 in. (23.0 x 4.0 cm)
       Product Performance and Technical Specs
       Coverage    3 x 3 ft.
       Diodes    Samsung LM301H
       LED Chip Count    640
       LED Driver    AC Infinity Proprietary Driver IB-240
       Efficiency    2.7 µmol/j
       PPFD    1788 PPFD
       Spectrum    660nm, 730nm, 3000K, 6500K
       Wattage    260 W
       Voltage    100-277V AC
       Frequency    50/60 Hz
       Amps    2.30 A @ 120V | 1.15 A @ 240V | 0.97 A @ 277V
       Controller    Digital Dimming Timer
       Power Connector Type    US Plug (NEMA 1-15 Type-A)
       Operating Humidity    35 to 85% RH
       Operating Temperature    32 to 140°F
       Life Expectancy    50,000 Hours
       ETL Cert. (Whole Product)    Product Manual PDF
       Product Manual
       Product Manual
       Product Manual PDF



    NOTE THIS LIGHT COMES WITH USA PLUG - Just add travel adapter as 240 v is accepted without issue.
